Omega Calibre 1666 (X-33) Service Manual
HTML Presentation by Chuck Maddox USA on 12 August 2004,
Scans Courtesy of Frank_be .
Last Revised: 13 August 2004, 14:16 GMT
Certain Rights Reserved...

I recently had the pleasure of meeting via email Frank_be of Belguim... Frank was able to obtain a Service manual for a Calibre 1666 movement which is more properly known as the movement that powers the Omega Speedmaster Professsional X-33 "Mars Watch". Frank was kind enough to scan the manual, and provide these scans to me so that I could host them for the benefit of X-33 Owners everywhere.

Index/Shortcuts:

Page: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, Afterword.

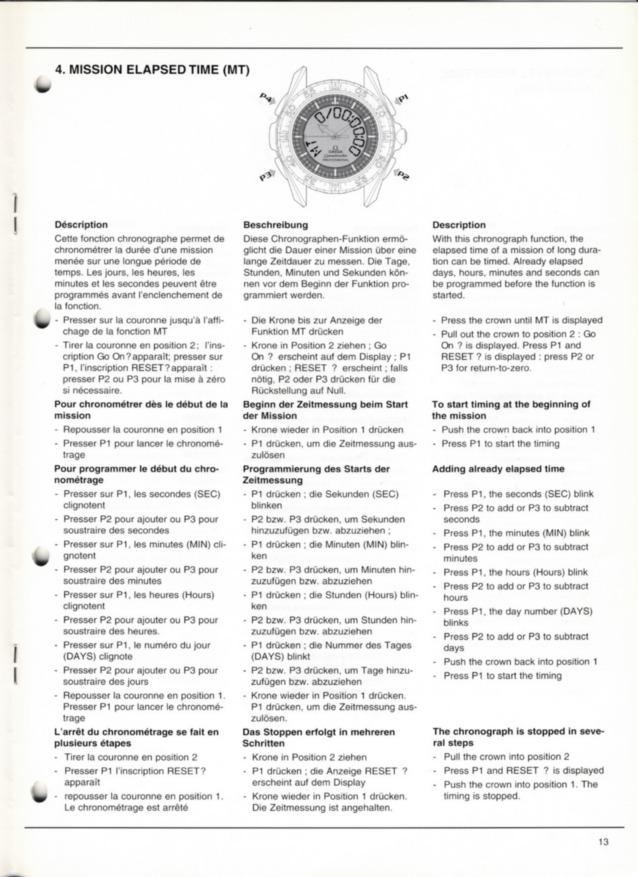

Page 1:

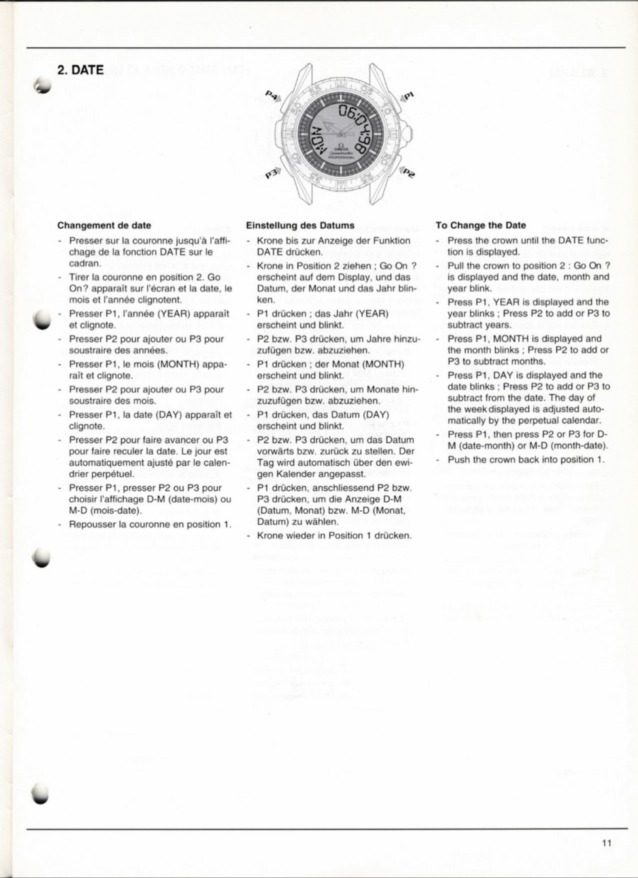

Index Up Down

Page 2:

Index Up Down

Page 3:

Index Up Down

Page 4:

Index Up Down

Page 5:

Index Up Down

Page 6:

Index Up Down

Page 7:

Index Up Down

Page 8:

Index Up Down

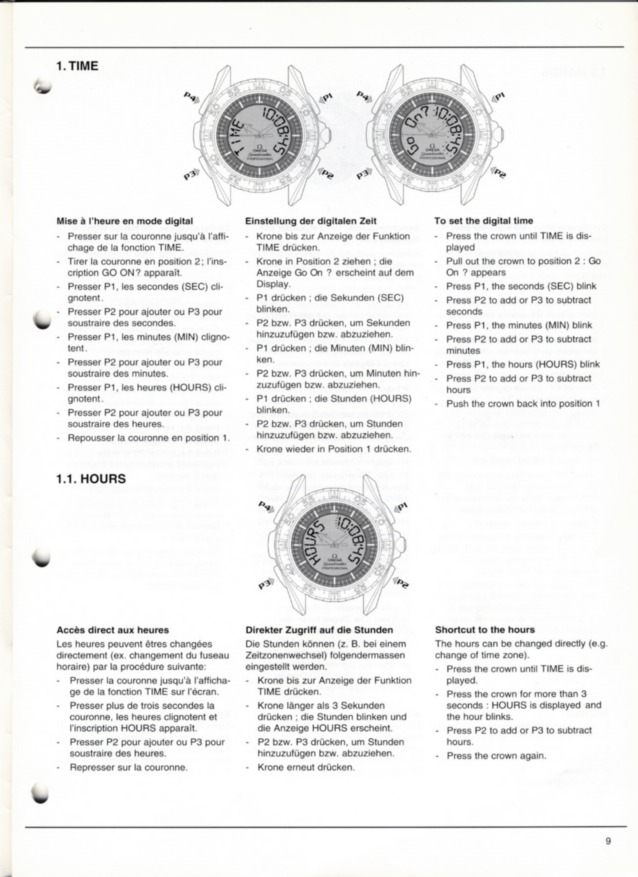

Page 9:

Index Up Down

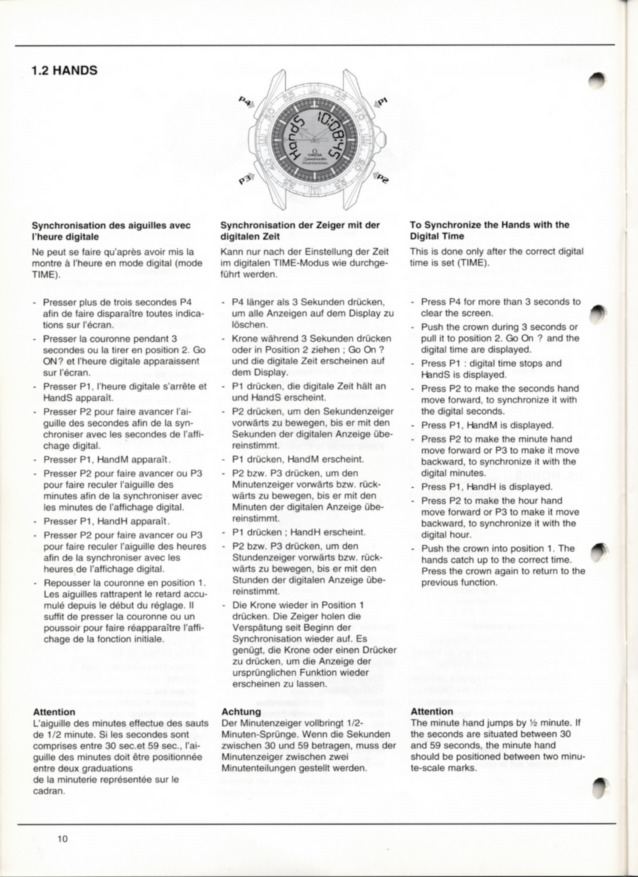

Page 10:

Index Up Down

Page 11:

Index Up Down

Page 12:

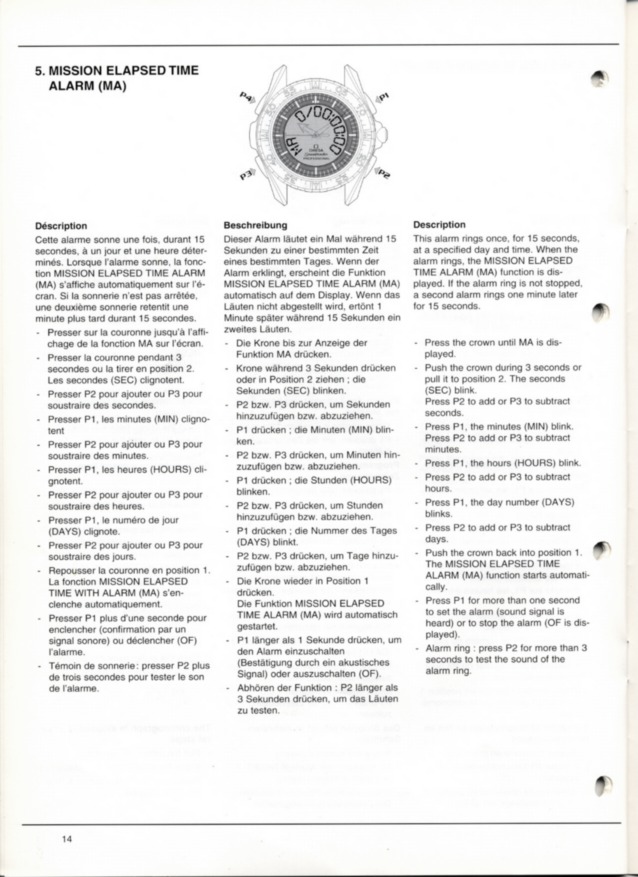

Index Up Down

Page 13:

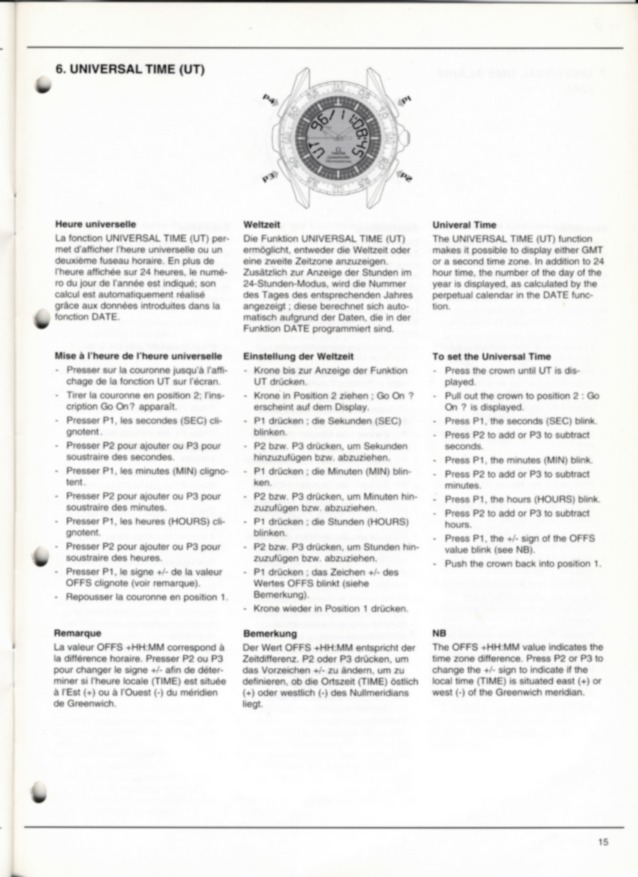

Index Up Down

Page 14:

Index Up Down

Page 15:

Index Up Down

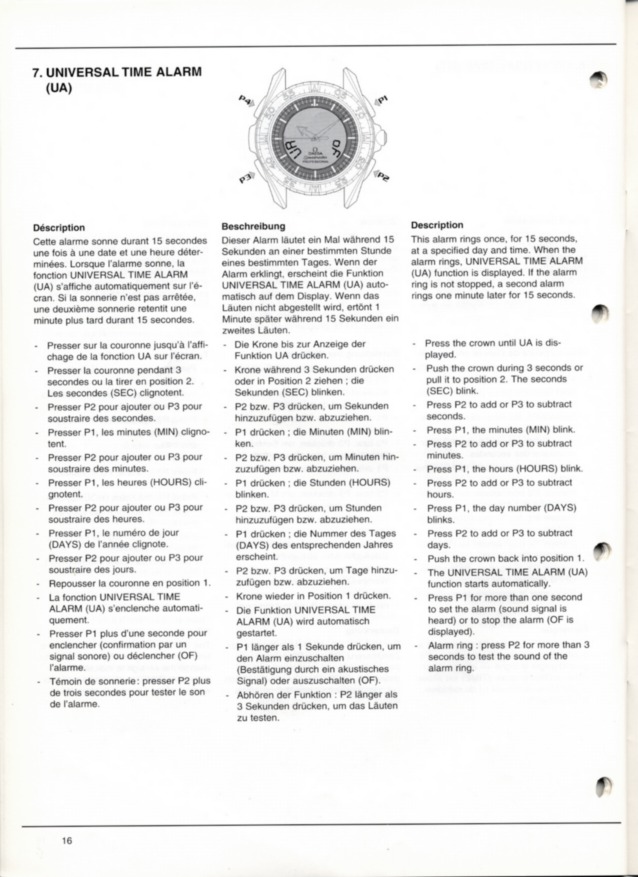

Page 16:

Index Up Down

Page 17:

Index Up Down

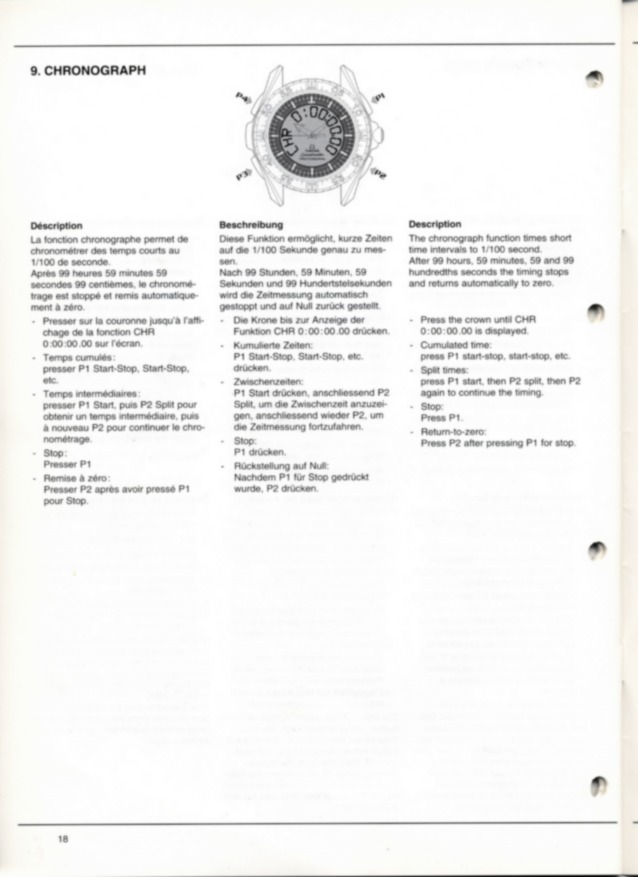

Page 18:

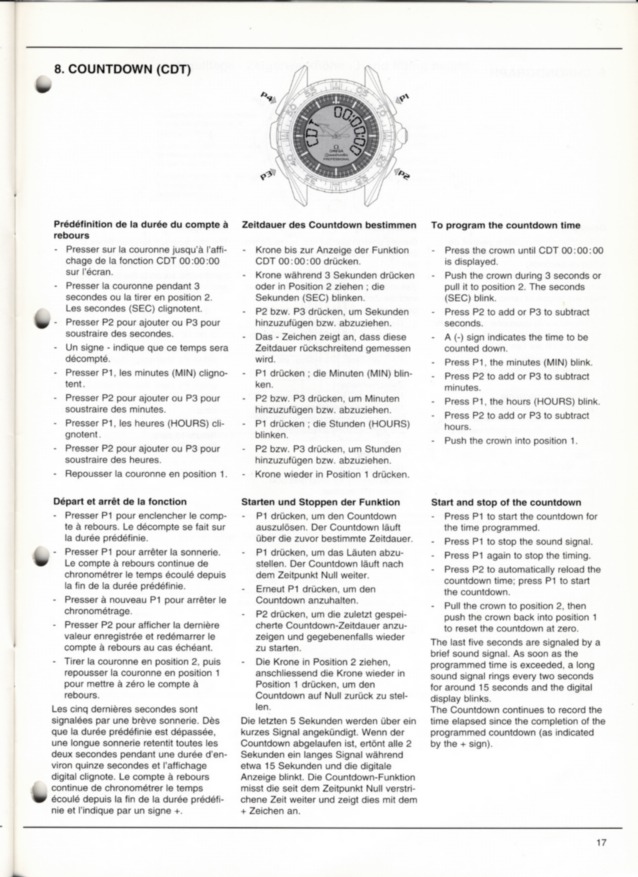

Index Up Down

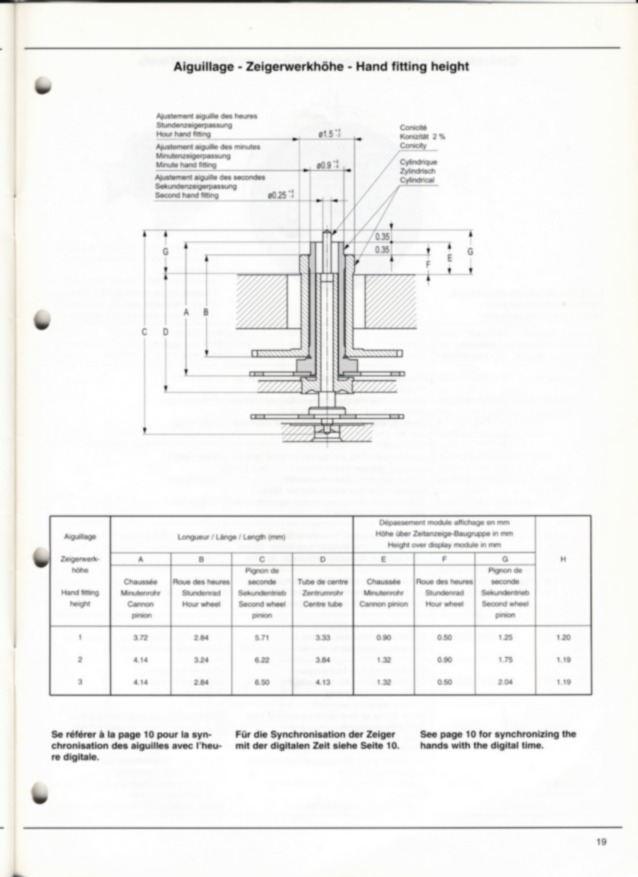

Page 19:

Index Up Down

Page 20:

Index Up Down

Page 21:

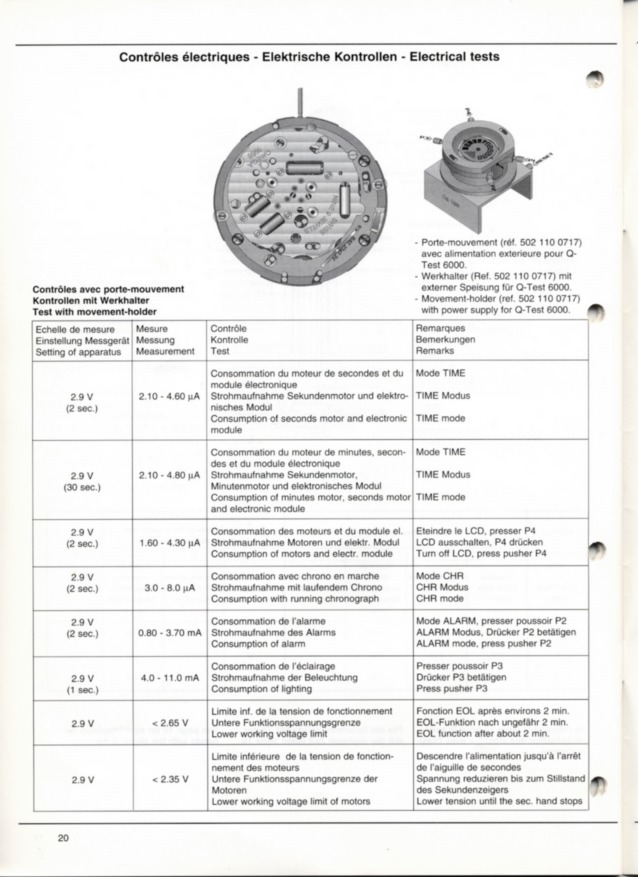

Index Up Down

Page 22:

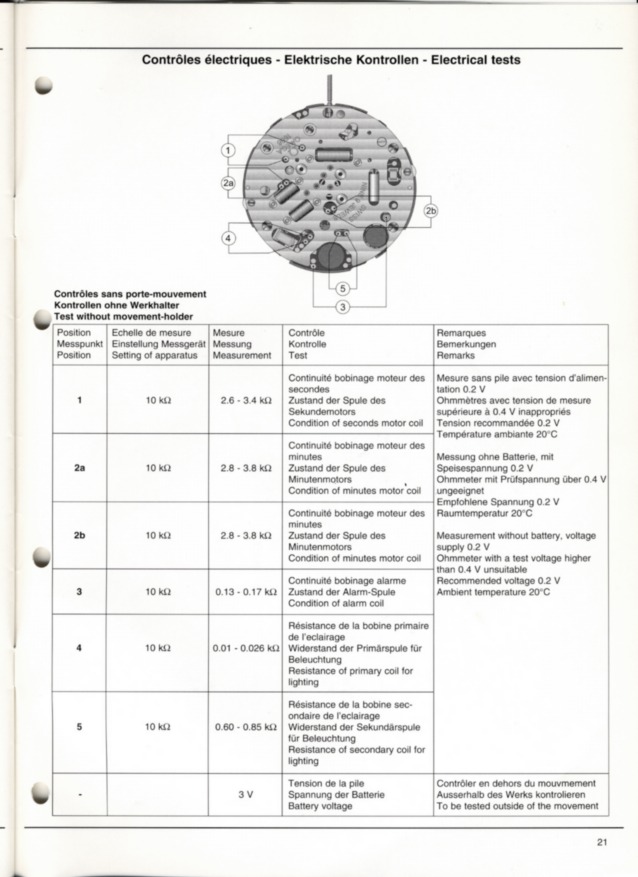

Index Up Down

Page 23:

Index Up Down

Afterword:

Index Up

As with most instruction manuals and catalogs, no copyright is present on this Service Manual. Since Omega didn't claim copyright, I feel I can not as well. The only stipulations that placed on this document that it not be used fraudulently (in other words, do not misrepresent printout's of this document or scans as an orginal manual)...

Thanks again to Frank for sharing this manual and going to the trouble to scan them!

Cheers!

-- Chuck

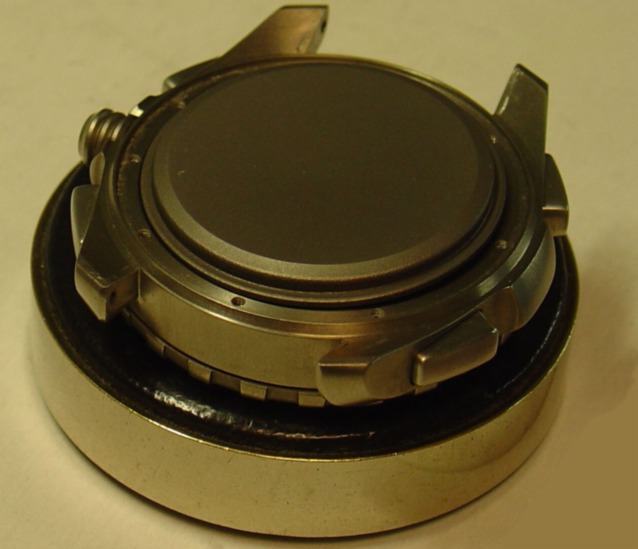

P.S. Check out these partial disassembly pictures Frank forwarded to me:
